Technical Overview
Sound power at max. speed (2010/30/EC)
57 dB
Maximum output air extraction
394 m³/h
Boost position air extraction
717 m³/h
Material body
Glass, Lacquered
Built-in / Free-standing
Built-in
Highlights
Special Features
iQdrive motor - The quiet, high-performance motor ensures efficient removal of odours and steam. Detects steam and odours to adjust the power level automatically – climateControl sensor with cookConnect system Highlight your kitchen – emotionLight Pro. voiceControl – Control hood functions and lighting using your voice. Home Connect – The app that makes your hood work smarter. Air circulationConvertible
Total power of the motors140 W
Controls2x7-Segment, LED, touch control
Number of speed settings3-stage + 2 intensive
Maximum output air extraction394 m³/h
Boost position air extraction717 m³/h
Sound power at max. speed (2010/30/EC)57 dB
Sound power boost (2010/30/EC)70 dB
Maximum output recirculating air249 m³/h
Boost position output recirculating404 m³/h
Sound power at max. speed (recirculation)62 dB
Sound power boost (recirculation)72 dB
Grease filter materialOther
Total annual energy consumption40.0 kWh/annum

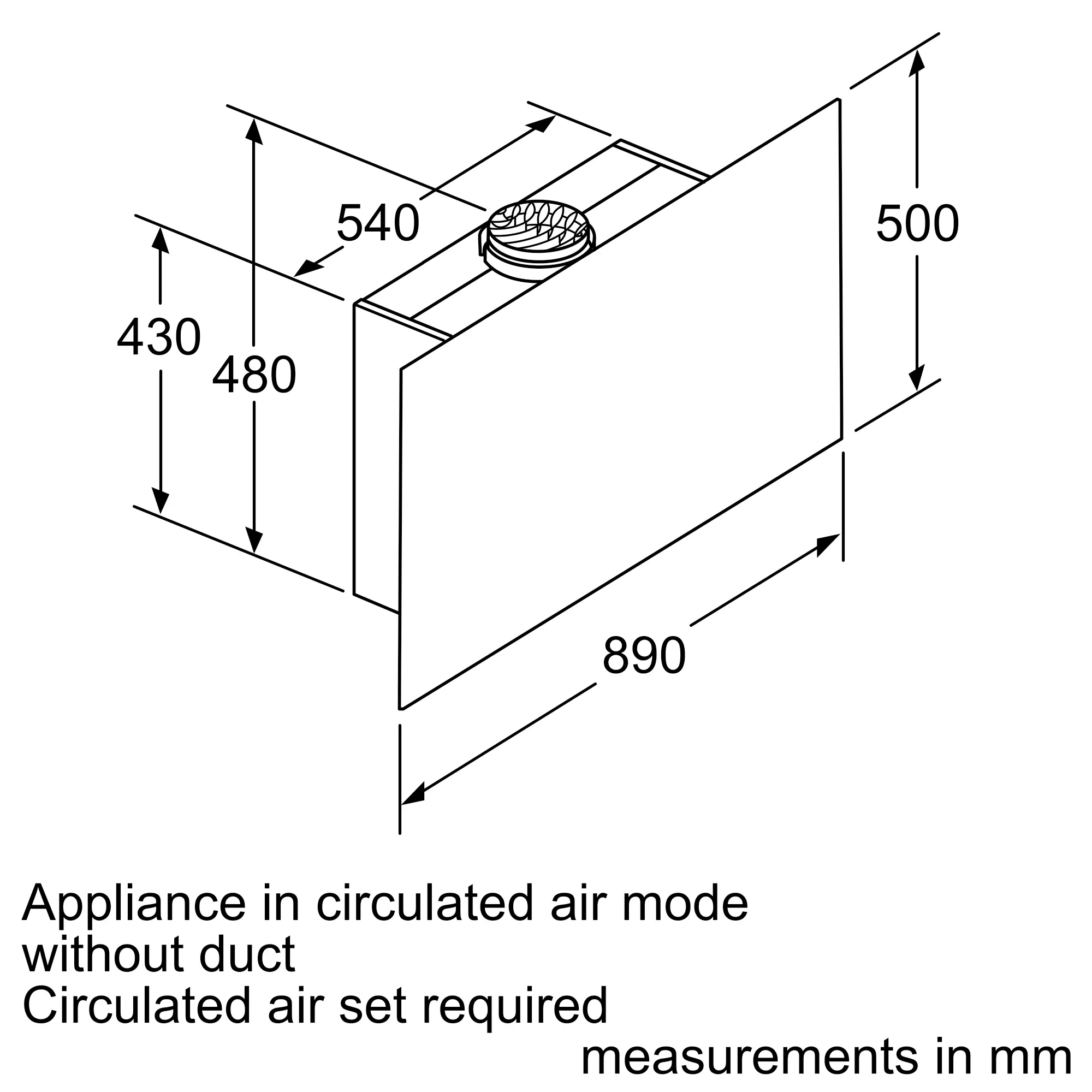

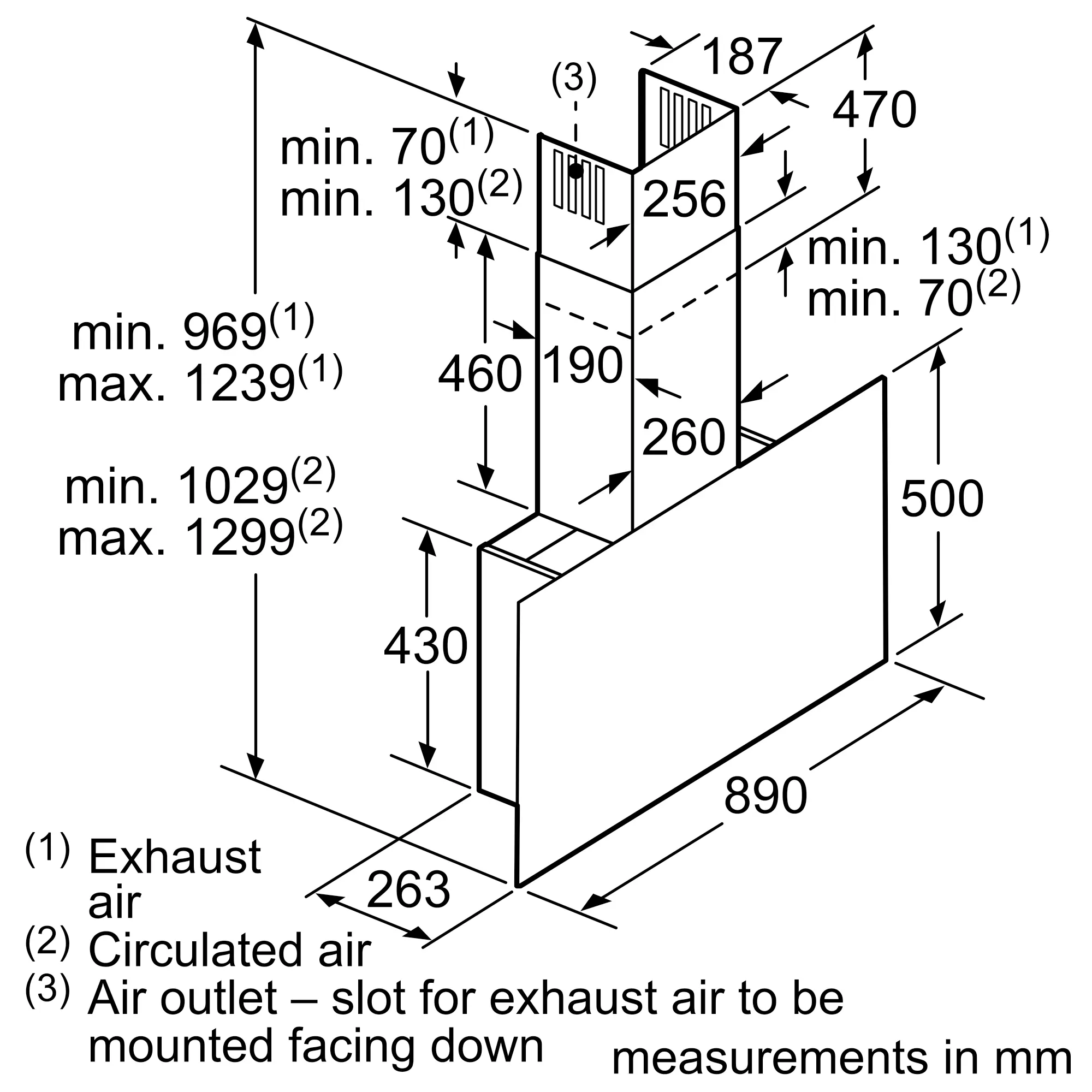

Height of the appliance430 mm
Width of the appliance890 mm

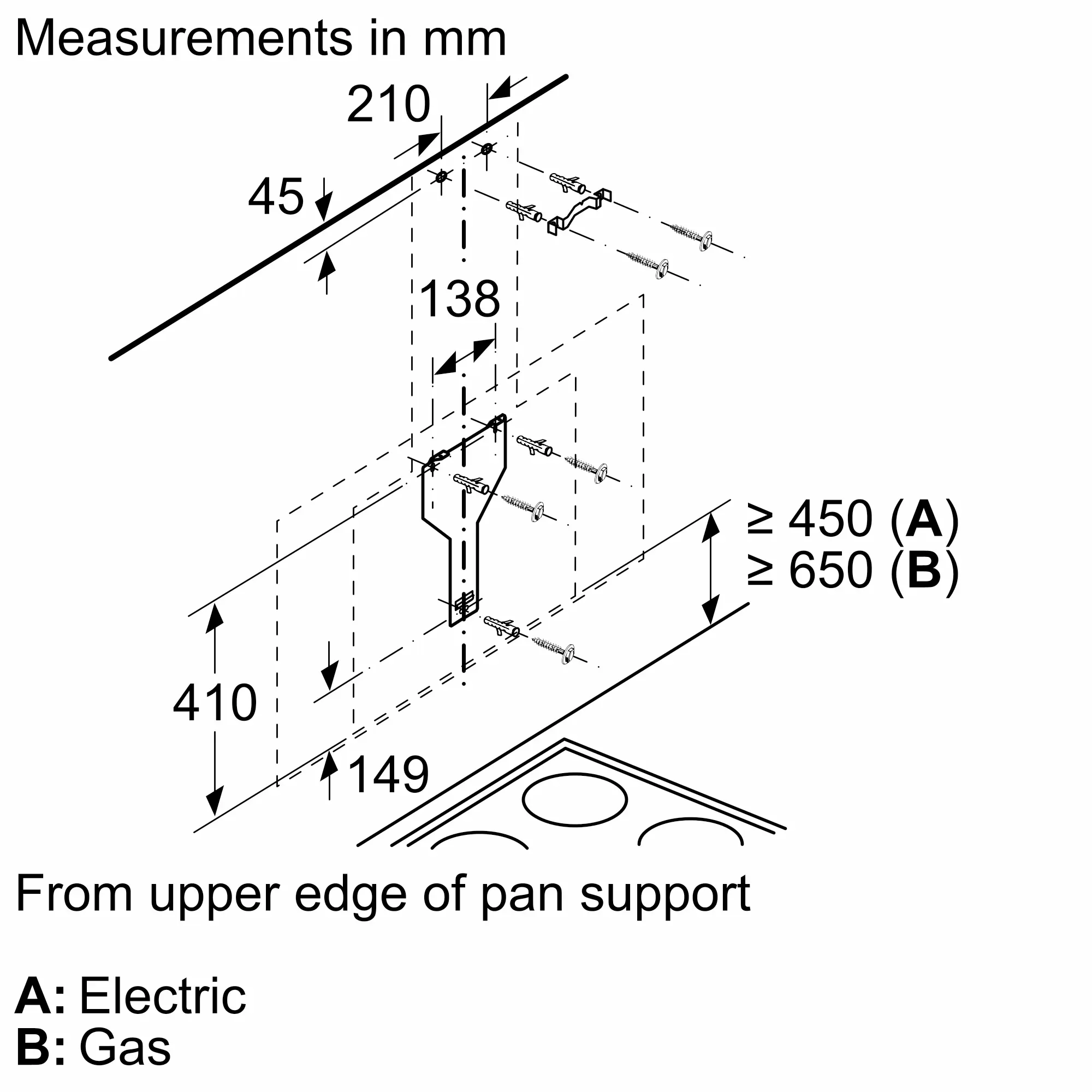

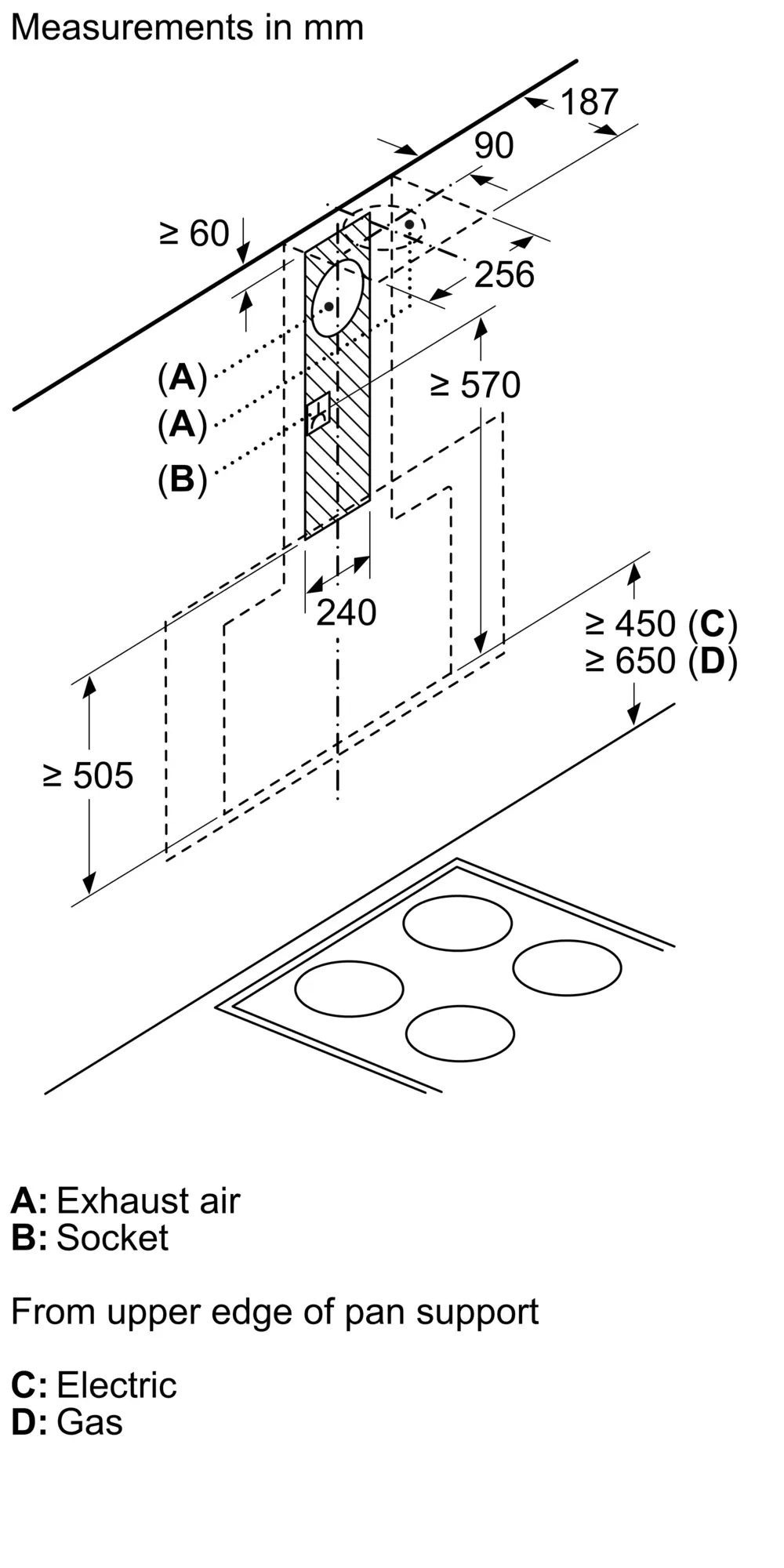

Minimum distance above an electric hob450 mm
Minimum distance above a gas hob650 mm
Diameter of air outlet120 / 150 mm
No-return airflow flapYes
Length electrical supply cord130.0 cm
Extremely silent appliancesYes
Delay Shut off modes10 min
Color temperatureNeutral (3.500 K)
Home Connect FeaturesRemote Monitoring and Control
Hob-based hood controlYes
